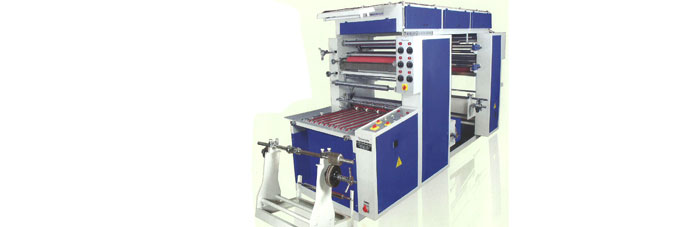

PSG Multipurpose 800

  • Features
  • Electricals
  • Optional
  • Lamination/gum coating unit with independent AC drive electric control panel, Fan, emergency stop relay etc.
  • Duplex unwind station for plain lamination.
  • Duplex unwind station for strip gumming.
  • Heavy duty unwind station with heavy duty break for full gumming operation.
  • Heavy duty rewind station with felt clutch mounted on ball bearing.
  • 12 ft. long heating chamber with infra tube heater with thermostat controlled.
  • Heavy duty reel stand with break for reel –to – reel gumming operation.
  • Aluminum feed table (Special Anodizad finish) with feeding gauge.
  • Manual feeding and 8 nos. N/S belt with new belt adjustment system..
  • Adhesive tray rack and pinion system for lamination and gumming unit.
  • Four number corner gum cutting holder with mayor bar gum control system.
  • 4 nos. rubber bush for different size strip gumming.
  • Standard Size 24”, 32”, 36”, 42”.
  • 3 Hp motor with speed reduction gear box variable speed drive electric control panel with AC drive controller for lamination unit.
  • 1 Hp AC Motor with speed reduction gear box variable speed drive electric panel with AC drive controller for gumming unit.
  • 8 nos. infra tube heater with independent thermostat controlled.
  • Drum heating roller with 1 kw heater with thermostat controlled.
  • Auto tension controller, web guiding, pneumatic shaft & pneumatic pressure.
