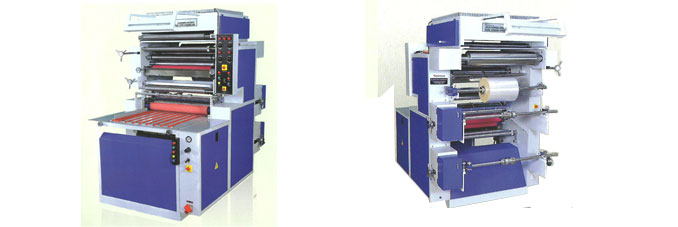

PSG Plain/ Window/ Strip 800

  • Features of Lamination Unit
  • Optional
  • AC Motor (Kirloskar make) with Speed reduction gear box variable speed drive electric control panel with AC drive controller.
  • Duplex unwind station for plain/window lamination and strip gumming laterally micro adjustable up to 100 mm.
  • Individual coating station with SS 304 gum tray with worm wheel, U/D system for Plain / Window Lamination and Strip gumming.
  • Duplex heavy duty rewinding station with felt clutch mounted on ball bearing.
  • Aluminum feed table (special anodized finish) with feeding gauge.
  • Manual feeding with 8 nos. belt with advance belt adjustment system.
  • Film sleeting device & perforation device on main unwind station.
  • Stock range 70~450gsm Paper or Board for Plain Lamination & 90~450 gsm for Window Lamination and 80~450 gsm Strip gumming.
  • 4 no. rubber roller : size 55 mm 3nos. 80 mm 1 nos. 4 set strip guide holder, 3 no. nylon wheel with 8 nos. paper guiding guage.
  • 8 nos. side gum cutting holder with Mayar bar gum finishing system.
  • Drum heating roller with thermostat controlled.
  • Dancing roller with wrinkle removal break banana rod, reel cutting stand carbon and steel gear.
  • Standard Size 24”, 32”, 36”, 42”, 48”.
  • Double side lamination / reel to reel attachment / length counter / pneumatic pressure.
